Description
• One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
• Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
• Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.
• All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
• All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8IN) Capacity chuck, MT2.
• Height: 750mm.
• Spindle Centre to Column: 127mm.
• Motor Power: 220W, Input Power: 370W.
• Column Diameter: 60mm.
• Spindle Travel: 60mm.
• Weight: 32kg.
• Suits light industrial, agricultural and woodworking applications.
• Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work.
• 16mm(5/8IN) Capacity chuck, MT2.
• Height: 750mm.
• Spindle Centre to Column: 127mm.
• Motor Power: 220W, Input Power: 370W.
• Column Diameter: 60mm.
• Spindle Travel: 60mm.
• Weight: 32kg.

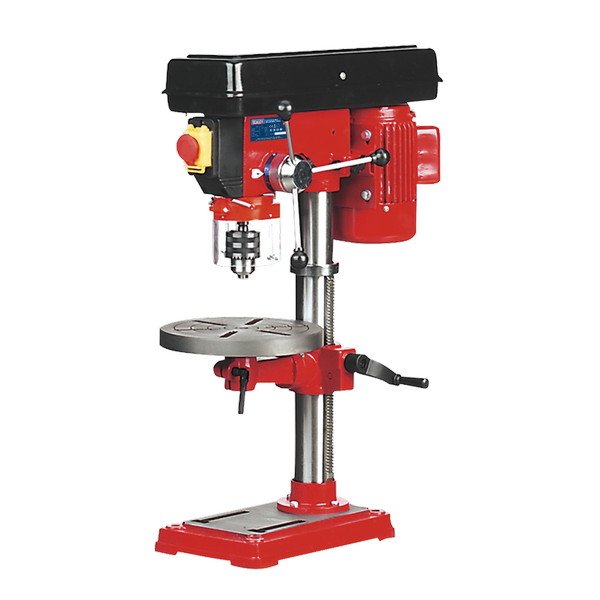

• Model No. GDM50B
